AU7 Belt Transfer

IMC AU Accessories and Applications

The belt transfer-elevator changes the trajectory by 90° of the products coming from one roller path to another.

Assembly is simple as the modules are mounted without support (to be ordered separately).

Max load capacity

50kg

belt speed

1.0m/s

lift time

0.3s

Up/down slope

not suitable

Room temperature

+5° to +40°

Download the technical sheet

Nominal voltage

24v (drive motor and elevator motor)

Control

ConveyLinxAi2

E-qube-Ai

ConveyLinx-I0

MotionLinx-Ai

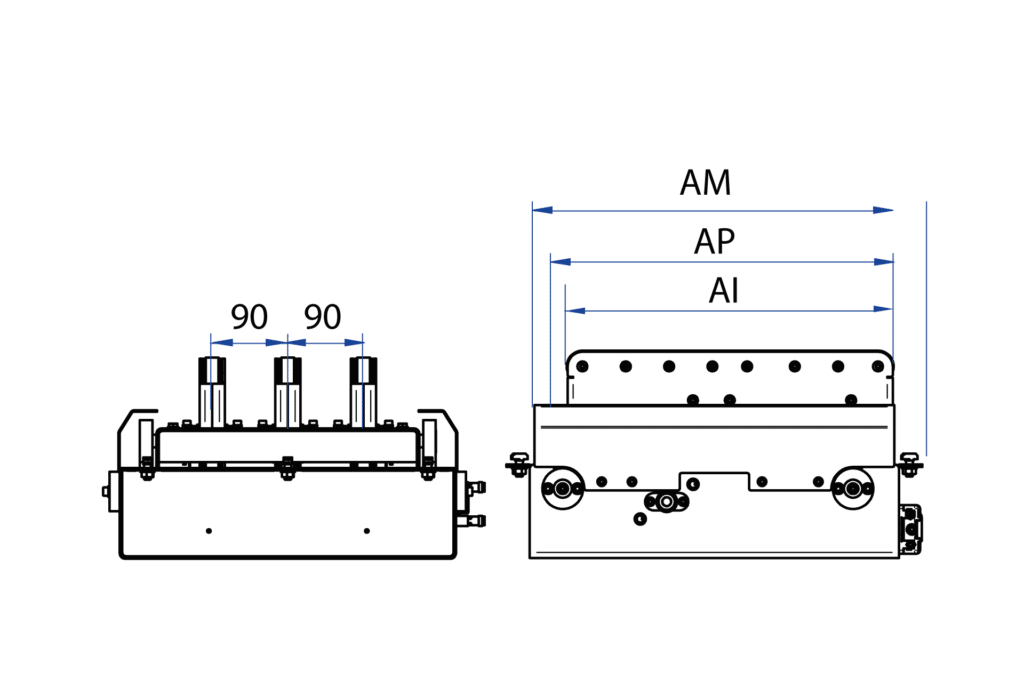

AP / Width between profiles

420 / 520 / 620 / 820mm

AM / Module width

HP + 60mm

AI/ Inner width

AP-45mm

Passage between branches

0 / 90 / 180 / 270 / 360 (multiple of 90)

Number of branches

2 – 5
